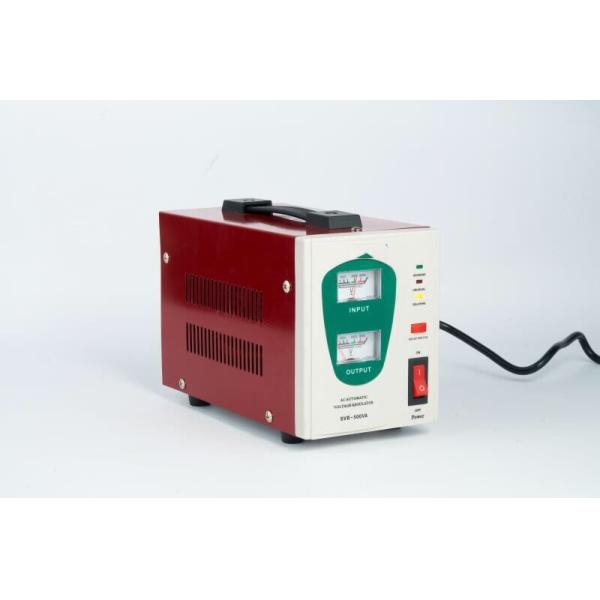

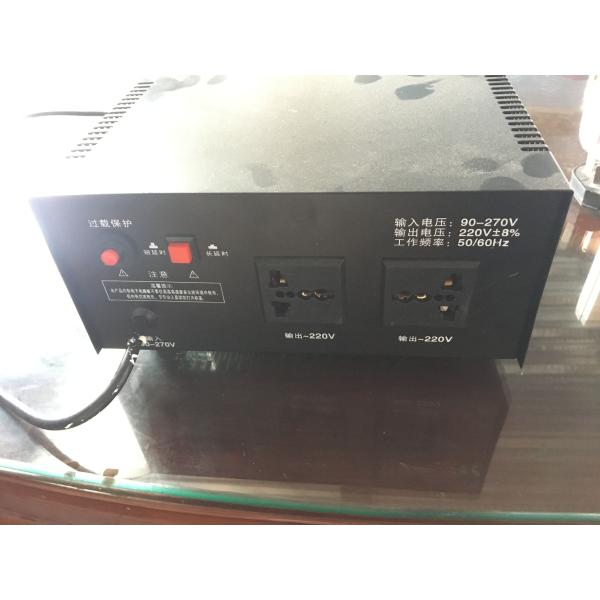

1000w Single Phase Voltage Stabilizer, Automatic Voltage Regulator SVC Series,High Efficiency and Energy Saving
Quick Detail:
| Capacity | 3KVA |
| Certificate | CE |
| Model | SVC |
| Phase | Single Phase |
Description:
SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state. The series of stabilizers driven, of general type, the voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
We are Manufacturer which specialized in Servo Voltage Stabilizer, Uninterruptible Power Supply (UPS), Active Power Filter, etc for nearly 40 years. And be vendor of Mitsubishi Elevator in East Africa, GE, Emerson.
Applications:
Computers ,test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment.
Specifications:
| SPECIFICATION | 500VA | 1000VA | 1500VA | 2000VA | 3000VA |
| Input | Phase | Single Phase | |
| Voltage | AC 150V-250V/70V-150V/50V-250V(Optional) | |
| Frequency | 50Hz/60Hz | |
| Output | Phase | 220V/230V/240V±3% or 110V/120V/130V±3%(Optional) | |
| Capacity | 400W | 800W | 1200W | 1600W | 2400W | |
| Frequency | 50Hz/60Hz | |
| Protection | Low Voltage | AC 184±4V | |
| Over Voltage | AC 246±4V | |
| Time Delay | 3-7sec/3-7min Selectable | |
| Overload/Short Circuit | YES | |
| Packaging | Pcs per Carton | 4 | 1 | |
| Shipping Wt.(Kg) | 16.6 | 21.35 | 23.15 | 7.9 | 11.45 | |
| Packing Dimensions(mm) | 245×340×425 | 495×285×390 | 255×295×240 | 365×275×280 | 540×325×270 | |
| Efficiency | AC-AC | >95% | |
| Acoustic | Noise Level | ≤50dB | |
| Environment | Temperature | -5℃ to 40℃ | |
| Humidity | 20% to 90% | |
| QTY(pcs) | 20FT | 3200 | 2100 | 2100 | 1120 | 1120 | |
| SPECIFICATION | 5000VA | 7500VA | 10000VA | 100000VA(Vertical) |
| Input | Phase | Single Phase | |
| Voltage | AC 150V-250V/70V-150V/50V-250V(Optional) | |
| Frequency | 50Hz/60Hz | |
| Output | Phase | 220V/230V/240V±3% or 110V/120V/130V±3% (Optional) | |
| Capacity | 4000W | 6000W | 8000W | 8000W | |
| Frequency | 50Hz/60Hz | |
| Protection | Low Voltage | AC 184±4V | |
| Over Voltage | AC 246±4V | |
| Time Delay | 3-7sec/3-7min Selectable | |
| Overload/Short Circuit | YES | |
| Packaging | Pcs per Carton | 1 | |
| Shipping Wt.(Kg) | 20.8 | 27.65 | 30.5 | 35 | |
| Packing Dimensions(mm) | 540×325×270 | 610×360×305 | 370×330×580 | |
| Efficiency | AC-AC | >95% | |
| Acoustic | Noise Level | ≤50dB | |
| Environment | Temperature | -5℃ to 40℃ | |
| Humidity | 20% to 90% | |
| QTY(pcs) | 20FT | 600 | 420 | 420 | 400 | |
Competitive Advantage:
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage protection etc.
